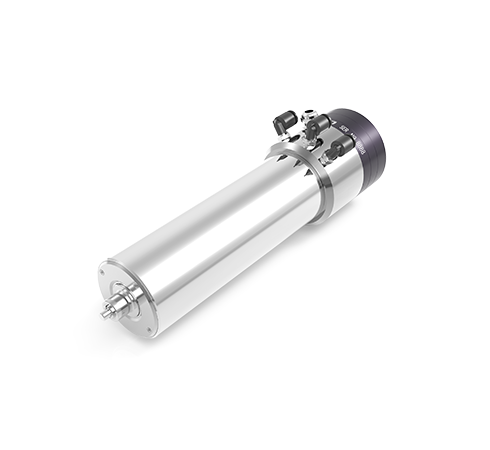

KL-100M

●This product adopts the air static pressure method,Is a high speed air float electric spindle,use quick automatic tool change,collet diameter∮3.175、∮6.

●Application scope:PCB(drilling gong amphibious)、high light of metal industry and so on.

●Suitable for high light machine processing equipment.

Maximum power：1.2kW

Maximum speed：80,000rpm

Please select product specifications.

KL-100M

Parameters 2D plan Appearance ✪Feature

1.High precision:dynamic precision≤8μm,static precision≤2μm,vibration≤1mm/s.
2.High efficiency:Strong torque in low speed and medium speed machining.
3.Extensibility:Collet diameter∮3.175、∮6 and has good compatibility and can be used widely in the circuit board industry.
4.Simple in structureand low failure rate.
5.High strength:The broaching mechanism consists of high strength material's shaft bully, high stability spring, and high end stainless steel chuck.
6.Circulation cooling:The increase in the cooling fluid circulation system of fret, be effective on front and rear bearing motor, cooling, to ensure the safe operation of the spindle, stable performance.
