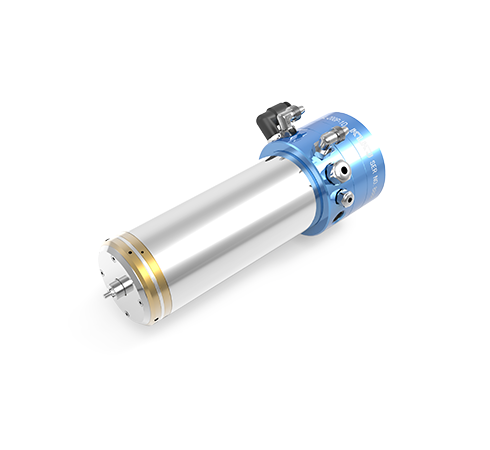

KL-200P-1D

●This product adopts the air static pressure method,Is a high speed air float electric spindle,use quick automatic tool change,with ∮1/8 collet.

●Application scope:PCB drilling and other industries.

●Suitable for high precision processing equipment.

Maximum power：0.85kW

Maximum speed：200,000rpm

Please select product specifications.

KL-200P-1D

Parameters 2D plan Appearance ✪Feature

1.High precision:dynamic precision≤8μm,static precision≤2μm,vibration≤1mm/s.
2.Small volume, small inertia, small heat variable.
3.Balance correction G0.4, low vibration, low noise.
4.High configuration:fast automatic tool change, optional speed sensor.
5.Extensibility:With ∮1/8 collet,it has good compatibility.
6.High strength:The broaching mechanism consists of high strength material's shaft bully, high stability spring, and high end stainless steel chuck.
7.Circulation cooling:The increase in the cooling fluid circulation system of fret, be effective on front and rear bearing motor, cooling, to ensure the safe operation of the spindle, stable performance.
