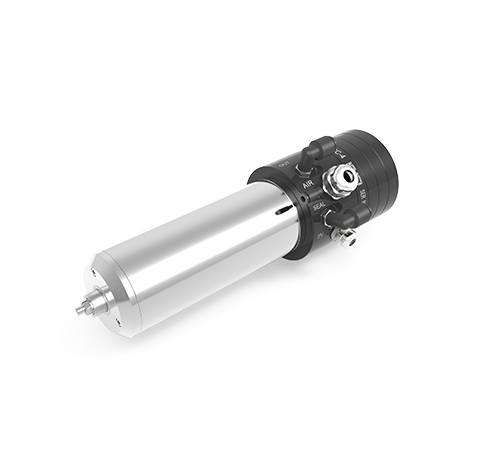

KL-60C-4

●High speed ball bearing spindle with quick ATC system , water-proof designing, ∮3.175、∮6 collet.

●Application scope:glass, metal processing and other industries

●Suitable for drilling ,rounting and so on.

●This product can be made according to customers' requirement.

Maximum power：1.2/1.5/1.8kW

Maximum speed：60,000rpm

Please select product specifications.

KL-60C-4

Parameters 2D plan Appearance ✪Feature

1.High precision: dynamic precision≤8μm,static precision≤2μm,shaft rotation runout≤1μm.
2.Small volume, small inertia, small heat variables.
3.Balance Grade: G0.4, low vibration, low noise.
4.High configuration: quick ATC system, optional temperature sensor, super precision ceramic ball bearing.
5.Low failure rate: Precision design, simple structure and easy maintenance.
6.Dustproof and waterproof:The front end of spindle adopts a multi-layer labyrinth structure to improve the dust sealing and waterproof effect.
7.High rigidity: Built-in motor,the front bearing seat and the spindle are integrated,and the overall rigidity and the coaxial precision are greatly improved.
