KL-60C-2

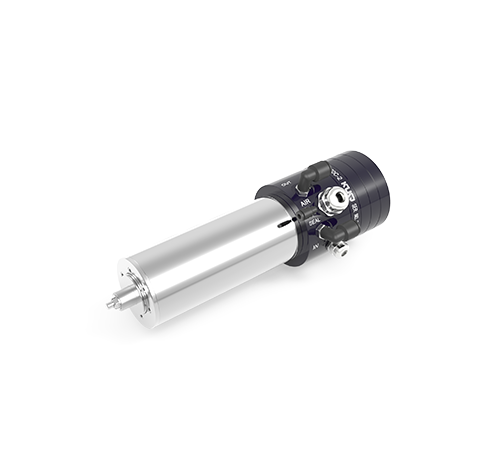

●This product is the high speed ball bearing spindle with ATC interface,∮3.175 collet.

●Application scope:PCB drilling and rounting..etc.

●Suitable for drilling ,rounting and so on.

●This product can be made according to customers' requirement.

Maximum power：1.2/1.5/1.8kW

Maximum speed：60,000rpm

Please select product specifications.

KL-60C-2

Parameters 2D plan Appearance ✪Feature

1.High precision: dynamic runout≤8μm,static runout≤2μm, shaft rotation precision≤1μm
2.Small volume, small inertia, small heat variables.
3.Balance Grade: G0.4, low vibration, low noise.
4.High configuration:Fast automatic tool changing, optional temperature sensor, super precision ceramic ball bearing.
5.Low failure rate:Stable design, strucural simplification and easy maintenance.
6.Good dustproof:The front end of spindle adopts a multi-layer labyrinth air curtain sealing structure to effectively improve the dust seal.
7.High rigidity: Built in motor,the front bearing seat and the spindle are integrated,and the overall rigidity and the coaxial precision are greatly improved.
