KLB-80K

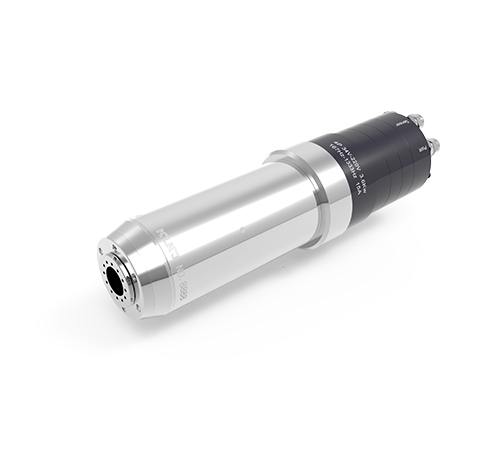

●This product is the high speed spindle of ultra precision ceramic ball bearing,bearing adopts international famous brand.Use quick automatic tool change design,with ISO handle.

●Application scope:glass、graphite, nonferrous metals and other industries.

●Suitable for engraving and milling machine and machining center high precision equipment.

●This product can be made according to customers' requirement.

Maximum power：3.6kW

Maximum speed：50,000rpm

Please select product specifications.

KLB-80K

1.High precision:static pulsation at the distal end of the shaft 80mm≤5μm,the inner cone of the shaft≤1μm
2.High power:uilt-in high-performance three-phase ac asynchronous motor, constant torque output, for a variety of processing.
3.Balance grade: G0.4, low vibration, low noise.
4.High configuration:fast automatic tool change, pre-installed international famous super precision ceramic ball bearings, each type of sensor is optional.
5.High rigidity:Front design for large span bearing spindle layout, to ensure that the spindle bearing capacity and rigidity.
6.The spindle speed is up to 40,000 RPM, which can achieve high precision, high efficiency and mirror effect.
7.Circulation cooling:with the internal design of the motor ,the body increases the cooling fluid circulation system,can effectively cool the motor 、front and rear bearings,ensure the safety and performance of the spindle.
