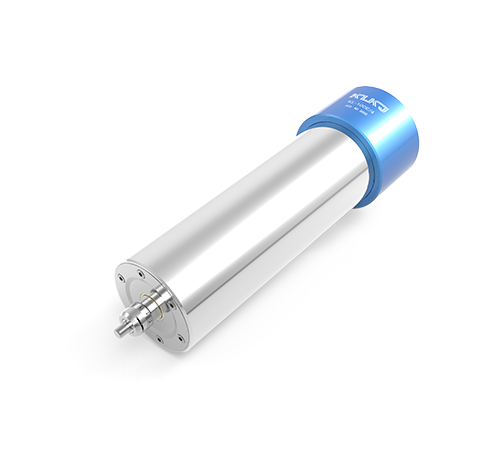

KL-100E-4

●This product adopts the air static pressure method,Is a high speed air float electric spindle,use quick automatic tool change,with ER11 handle.

●Application scope:high light of metal industry and so on.

●Suitable for high light machine processing equipment.

Maximum power：1.2kW

Maximum speed：100,000rpm

Please select product specifications.

KL-100E-4

Parameters 2D plan Appearance ✪Feature

1.High precision:dynamic precision≤8μm,static precision≤2μm,vibration≤1mm/s.
2.High efficiency:Strong torque in low speed and medium speed machining.
3.Small volume, small inertia, small heat variable.
4.Balance correction G0.4, low vibration, low noise.
5.Extensibility:With ER11 handle,it has good compatibility.
6.Simple in structureand low failure rate.
7.Circulation cooling:The increase in the cooling fluid circulation system of fret, be effective on front and rear bearing motor, cooling, to ensure the safe operation of the spindle, stable performance.
