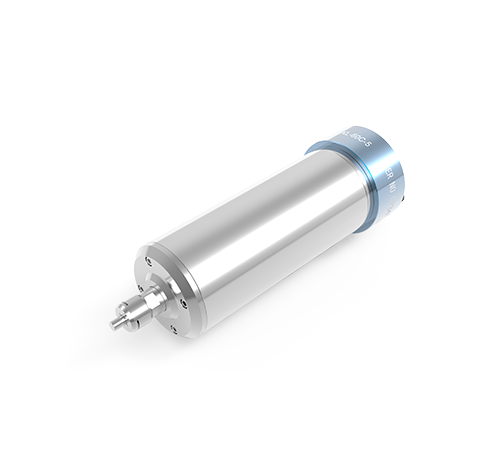

KL-60C-5

●High speed ball bearing spindle ,manual tool change system ,with ER11 collet.

●Application scope:PCB drilling & rounting,、galss and metal machining..etc. industries.
●Suitable for glass engraving & milling.

Maximum power：1.5kW

Maximum speed：60,000rpm

Please select product specifications.

KL-60C-5

Parameters 2D plan Appearance ✪Feature

1.High precision:dynamic runout≤8μm,static rouout≤2μm,shaft rotation runout≤1μm.
2.Small volume, small inertia, low heat variables.
3.Balance grade: G0.4, low vibration, low noise.
4.Low failure rate: Precision design, simple structure, easy maintenance.
5.Circulating cooling system : Buit-in motor ,internal cooling system, ensuring the stator and bearings keep nomoral temparature and the spindle working well .
